03.06.2019 Press release

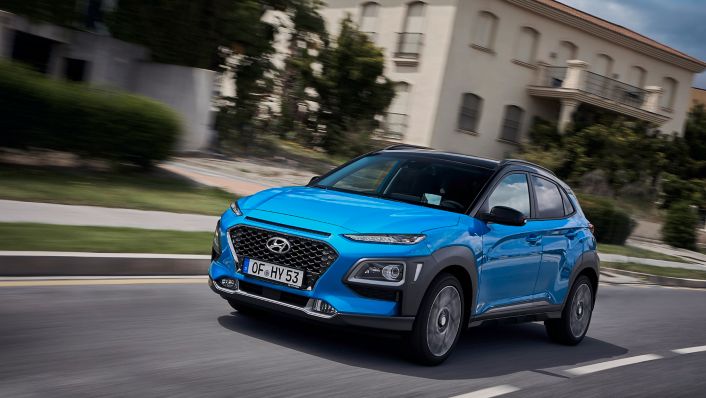

All-New Hyundai Kona Hybrid – Technical specifications

  • The All-New Kona Hybrid extends the popular, award-winning Kona range to offer even more choices for Hyundai customers
  • Hyundai is answering European customers’ demands for more SUV-bodied eco-mobility models
  • It offers an efficient full hybrid powertrain wrapped in an uncompromised expressive, bold design
  • The All-New Kona Hybrid also comes with interior and technology enhancements including Blue Link® connectivity

Press material

  • Download

Even more to offer European customers from the award-winning compact SUV.

Technical specifications


Engine


Type: KAPPA 1.6 ATKINSON GDI
Displacement: 1,580 cc
Bore x stroke: 72 X 97 mm
Compression ratio: 13.0
Power: 105 PS @ 5,700 rpm
Torque: 147 Nm @ 4,000 rpm


Electric Motor


Type: Permanent Magnet Synchronous Motor
Maximum Power (kW/PS): 32 kW / 43.5 PS
Maximum Torque (Nm): 170 Nm


Battery


Type: Lithium-Ion Polymer
Capacity (kWh): 1.56 kWh
Power Output (kW): 42 kW
Voltage (V): 240 V


Performance


Maximum speed (km/h): 160
0-to-100 km/h acceleration: 11.2 (16’’ tyre) / 11.6 (18’’ tyre)
Fuel consumption combined (l/100 km): 3.9 (16” tyre, NEDC) / 4.3 (18” tyre, NEDC)
CO2 combined (g/km): 90 (16” tyre, NEDC) / 99 (18” tyre, NEDC)


Transmission


Automatic: 6-Speed Dual Clutch Transmission


Gear ratios


KAPPA 1.6 ATKINSON GDI / 6 DCT


1st: 3.867
2nd: 2.217
3rd: 1.371
4th: 0.930
5th: 0.956
6th: 0.767
Reverse: 5.351
Final drive: 4.188 / 3.045 (1ST-4TH / 5TH - Reverse)


Suspension and damping


Front: Macpherson Strut Type with Gas shock absorbers
Rear: Multi-link Type with gas shock absorbers


Steering


Type: Rack & Pinion
Gearing: 2.5 turns lock-to-lock
Turning radius: 5.3 metres (minimum)
Overall Steering Gear Ratio: 13.4


Brakes (all models)


Front (Diameter): 305 mm
Rear (Diameter): 284 mm
Assistance: ABS+ESC STD (+FCA)


Wheel type | Tyres


16-inch alloy wheels: 205 / 60R16
18-inch alloy wheels: 225 / 45R18


Exterior (mm)


Overall length: 4,165
Overall width: 1,800
Overall height (with roof rack): 1,550 (1,565)
Wheelbase: 2,600
Ground clearance: 170
Front overhang: 845
Rear overhang: 720
Wheel tread (front) (16’’ / 18’’): 1,575 / 1,563 / 1,559
Wheel tread (rear) (16’’ / 18’’): 1,584 / 1,572 / 1,568


Interior (mm)


Head room (With/ Without sunroof)
First row: 1,005 (965)
Second row: 961

Leg room
First row: 1,054
Second row: 880

Shoulder room
First row: 1,054
Second row: 880​​​​​​​

Hip room​​​​​​​
First row: 1,355
Second row: 1,326


Capacities (litres)


Fuel tank (litres): 38
Luggage (l VDA): V211(544) / V213(361) / V214(1,1143)


Weight


Curb weight (kg) (in running order without driver): 1,376 ~ 1,453
Maximum Payload: 427 ~ 504
Gross Vehicle Weight (kg): 1,880
